HF X RAY GENERATORS
Completely indigenously developed High Frequency x-ray generator used for Industrial application. Right now we are the only one in India who are producing this type of generators.
| Description | 80KV | 140KV | 180KV |
| KV range |
40 - 80KV |
60 - 140KV |
60 - 180KV |
| mA range |
0.4 - 1.2mA |
0.4 - 1.2mA |
0.4 - 1.2mA |
| Duty cycle |
100% |
100% |
100% |
| X-ray tube | Glass tube Be filter | Glass tube Be filter | Glass tube Be filter |
| Focal spot |
0.8 mm x 0.8mm |
0.8mm x 0.8mm |
0.8mm x 0.8mm |
| Beam angle |
80° |
80° |
80° |
| Protection |
1. Over voltage, 2. Over current, 3. Thermal | 1. Over voltage, 2. Over current, 3. Thermal | 1. Over voltage, 2. Over current, 3. Thermal |
| Trigger mode |
External / Internal |
External / Internal |
External / Internal |
450KV X RAY GENERATORS
| 450 kV X-Ray Source | |
| Maximum Voltage | 450 kV |
| Focus | Dual Focus |
| Focal Spot Size | 0.5 x 0.5 mm 0.8 x 0.8 mm |
| Current | ≥ 1.0 mA at maximum Kv |
| Mode of Operation (optional) |
Constant Power Mode & Constant Current Mode |
| HV Cables | 15 meters |
| Cooling System | Oil Cooled (Oil is cooled by closed loop water chilling system) |
| Temp Warning |
System provides with safety alarm for temperature. If temperature goes beyond the rated value the system will be tripped automatically |
| Power Requirement | The source work on 1ф / 3 ф, 220/ 440V 50 Hz. |
| Safety Features |
The system will have personal and equipment safety features as following (a) Door Closure switches (b) Radiation ON indication by glowing of lamp (c) Emergency OFF (d) Radiation leakage monitoring system (Secondary Dosimeter) at control room |
| X-Ray Field Size | 400 x 400 mm at 1 meter ( minimum) |
| Leakage Radiation |
Less than 5 mSv/h at 1 meter at full load |
| Collimator | Motorized movement of four jaws system for asymmetric as well as symmetric beam limiting from 0 x 0 mm to full field size at 1 meter |
| Flat Panel Based Digital Imaging System | |
| Operational Energy Range | 20 keV - 450 keV X-Ray Radiation |
| Receptor Type | Amorphous Silicon |
| Conversion screen | CsI Crystal |
| Pixel Area (Active) | 40 x 40 cm |
| Pixel pitch | 140 μm |
| Limiting Resolution | 3.0 Ip/mm or better |
| A/D conversion | 16 bits or better |
| Power Supply | 230 V AC, 50 Hz |

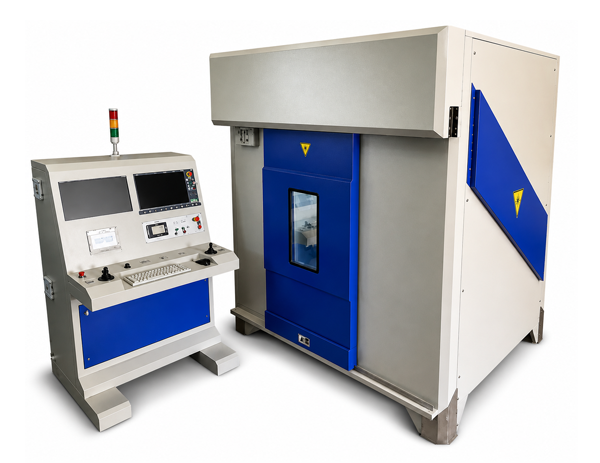

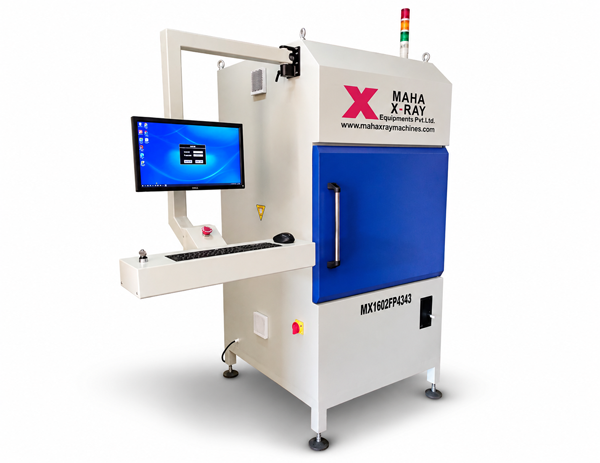

MIX SERIES X RAY INSPECTION SYSTEMS
MIX Series X-ray inspection system is a rugged, yet sophisticated inspection tool suitable for both production as well as failure analysis and lab environments. This system was particularly designed for classical non-destructive testing (NDT) requirements, and is suitable for the inspection of aluminium castings, welding of carbon steel and stainless steel tubes, inspection of assembled parts, inspection of electrical moulds, etc.
General Information
System consists of mechanical components (Cabinet & Manipulator) Radiological components, Detector components, Monitoring components, console for object movement and x-ray control.
X Ray Cabinet
Standard X-ray cabinets are provided with lead shielding appropriate to power of x-ray system installed.
Cabinets are equipped with manual sliding doors for loading and unloading job.
Doors have interlock system to protect x-ray leakage.
Door is fitted with an x-ray resistance lead glass window to direct view of object while inspection.
Cabinet has warning lamp for X-ray ON.
MANIPULATOR SYSTEMS
Cabinet is provided with customized manipulator system as per specific application and size of objects.
Main axis of Manipulator are
1. Right / Left movements (X)
2. Up / Down movement (Y)
3. To / Fro movement (Z)
4. Rotation movement (ω)
5. Tilt (Ø)
All movements are controlled by joysticks on console.
X-Ray Systems
X-Ray units used are from MSG series operating at high frequency. Depending on power requirement either mono-block or unipolar x-ray housing are used. For mono-block TEC is used for cooling and for unipolar x-ray tubes water cooling system is used to guarantee 100% duty cycle.
Control Units
Features are as follows
1. Mode of operation
2. Automatic pre heating function
3. Manual KV, mA adjustment
4. X-ray ON / OFF
5. Emergency OFF
6. Manipulator movements control
Image Processing Software
Features are as follows
1. Image management system
2. Brightness / Contrast adjustment
3. Zoom / Pan
4. Magnifying glass
5. Vertical / Horizontal flip
6. Negative (invert)
7. Pseudo color
8. Crop
9. Annotation
10 . Angular rotation
11. Length measurement
| Description | MIX160FP | MIX225FP |
| Working Range |
40– 160 KV |
40-225 KV |
| mA Range |
1 – 5 mA |
1 – 13 mA |
| Generator Type |
Mono-Block |
Unipolar |
| Focus | 0.8 mm | 0.4 mm |
| Focal Spot |
0.8 mm x 0.8mm |
0.8mm x 0.8mm |
| Detector Type |
Flat Panel | Flat Panel |
| Maximum Thickness of Inspection | AL : 50 mm Fe : 16 mm |
AL : 100 mm Fe : 35 mm |
| Cooling System |
TEC |
Water Cooling |
X RAY IMAGES
Automobile X-Ray Images
Al Casting Inspection
Air Filter Inspection
Oil Filter Inspection
Door Lock Switches Assembly Inspection
Door Lock Switches Assembly Inspection
Electronic Component X Ray Images
Plastic Molded PCB Inspection
Plastic Electronics Toys Inspection
Ceramic Fuse Inspection
Bomb Fuse Inspection
Switch Gear Assembly Inspection
