MIXFPD225
MIXFPD225 is the new evolution of the century in non-destructive testing technology, X-ray real-time imaging detection technology has entered the practical application field of industrial product detection. With the help of automation based manipulator system, increase the speed of production. High resolution image with image processing, inspection become easier. Easy loading and unloading of flexible size parts makes machine universal.

   Machine Type    Industrial X-Ray Machine
   Model Number    MIXFPD225
   Door Opening    800X1400mm
   Maximum Job Size Can Be Scan    Diameter 500 X 1000mm
   Detector Type    Flat Panel Dynamic Detector
   Detector Area    210X210 mm
   X-Ray Generator Energy    225kV 8mA
   Machine Size including console (LXWXH)    3500X3500X2600mm
   Machine Weight    4500 KG

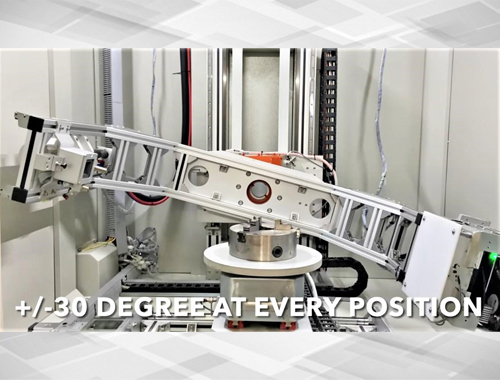

   Part Loading    5 Axis Manipulator

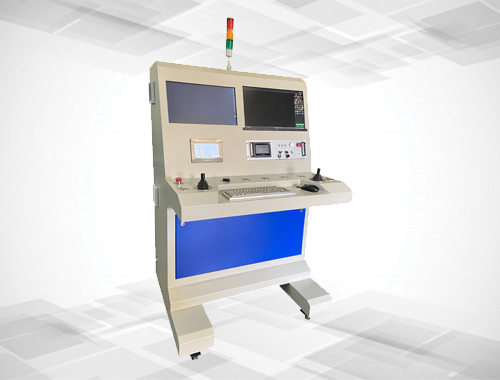

   Display    19” & 21” non touch display
   Load Capacity    50 kg
   Industry    Casting, ceramics, special alloys, plastic / composites, wire& rubber parts, metal rods etc.
   X-Ray Emission    < 1uSv/hr
