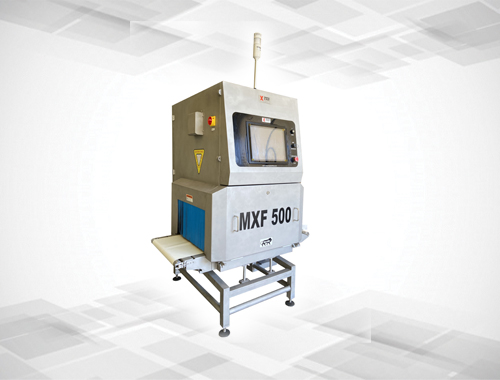

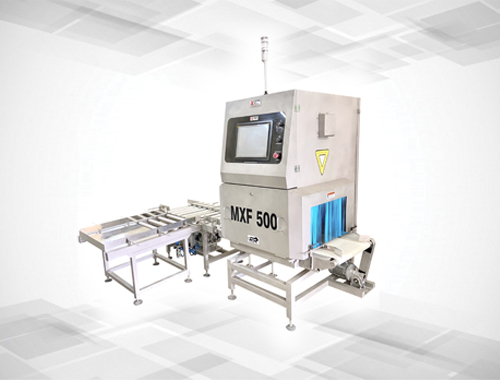

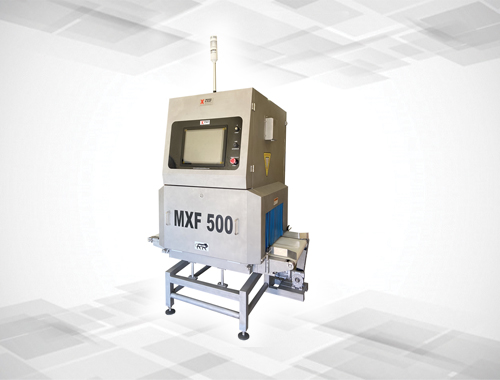

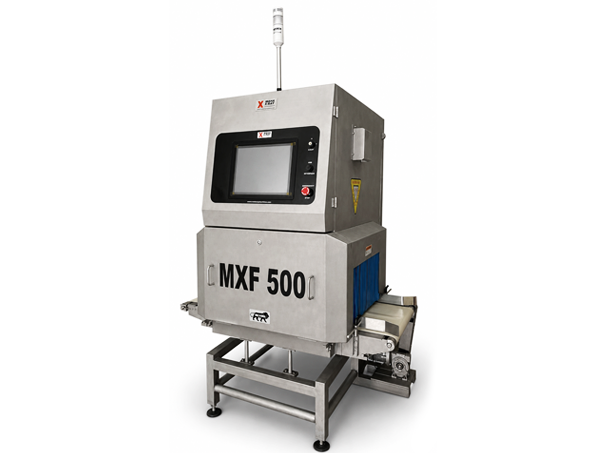

MXF500 is specially build with SS316 and SS304 to upgrade your food line, Flexible tunnel size provided for inspecting number of varieties of products. It is suitable for packed products, cartons, products with height are less than diameter. This X-ray system provides better detection capabilities, increases traceability, and assures the overall quality of the inspected food products.

   Machine Type    Food Scan X-Ray Machine
   Model Number    MXF500
   Tunnel Size    450X330mm
   Maximum Job Size Can Be Scan    350X320mm
   Detector Type    Line Scan Detector
   Detector Area    500mm
   X-Ray Generator Energy    80kV 1mA
   Machine Size (LXWXH)    1300X1200X2300mm
   Machine Weight    400 KG
   Part Loading    Conveyor Based
   Display    15” Touchscreen display
   Load Capacity    20 kg
   Rejection System    Diversion conveyor
   Industry    Food, Pharma, Beverage, Pet Food, Nutraceuticals, Personal Care.
   X-Ray Emission    < 1uSv/hr
